DockRite Vertical Lifts

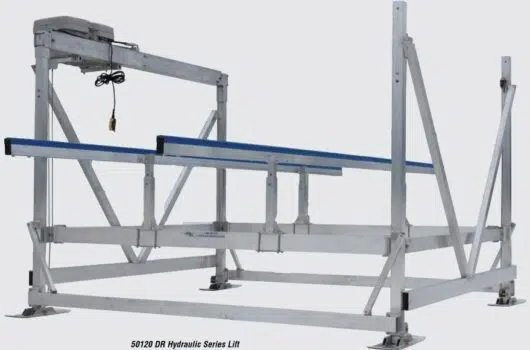

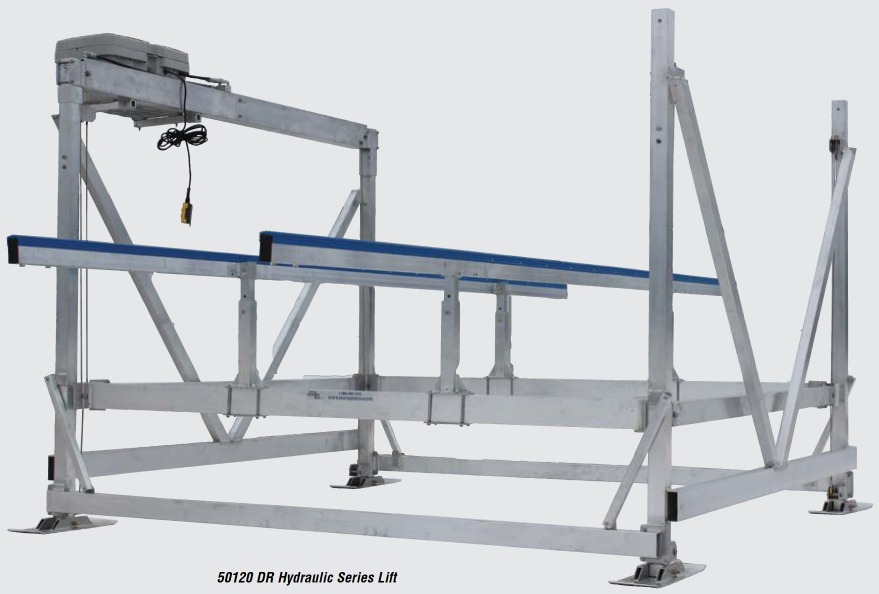

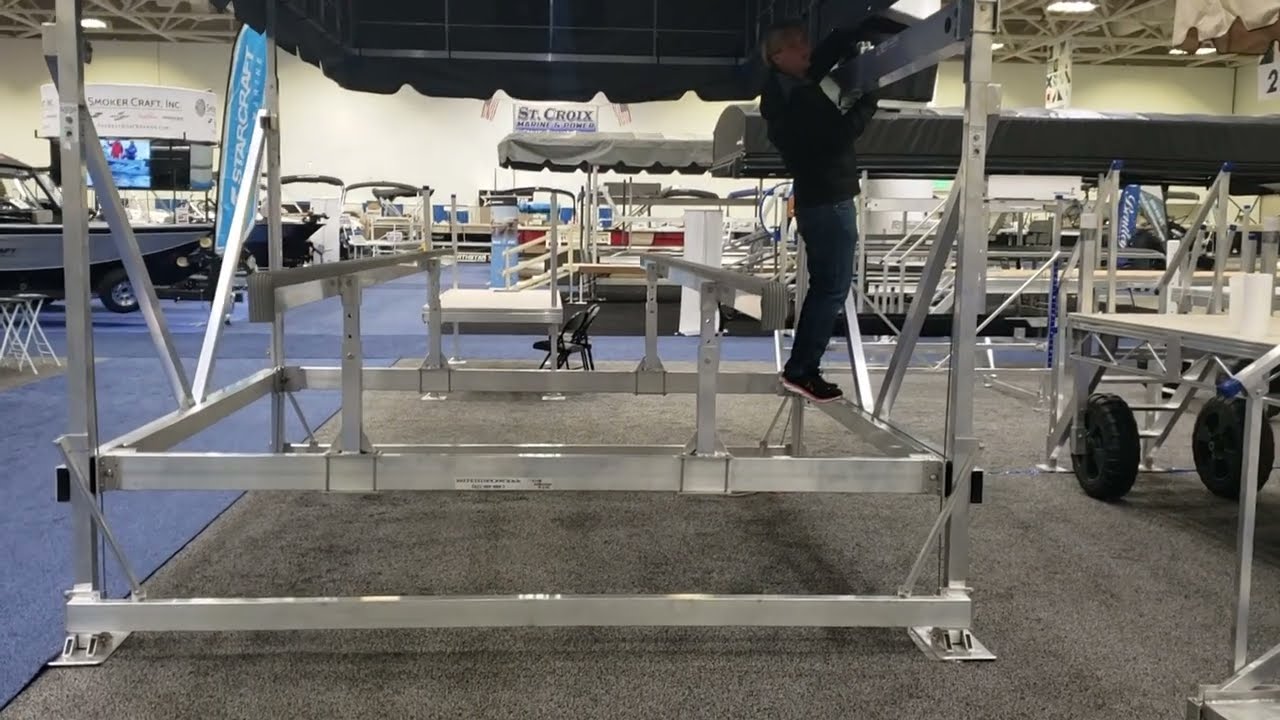

Introducing the Dock Rite Hydraulic Lifts
Product Highlights:
- The Dock Rite hydraulic lift in the Pro Series provides one of the quickest lifting speeds of any lifting method in the industry.

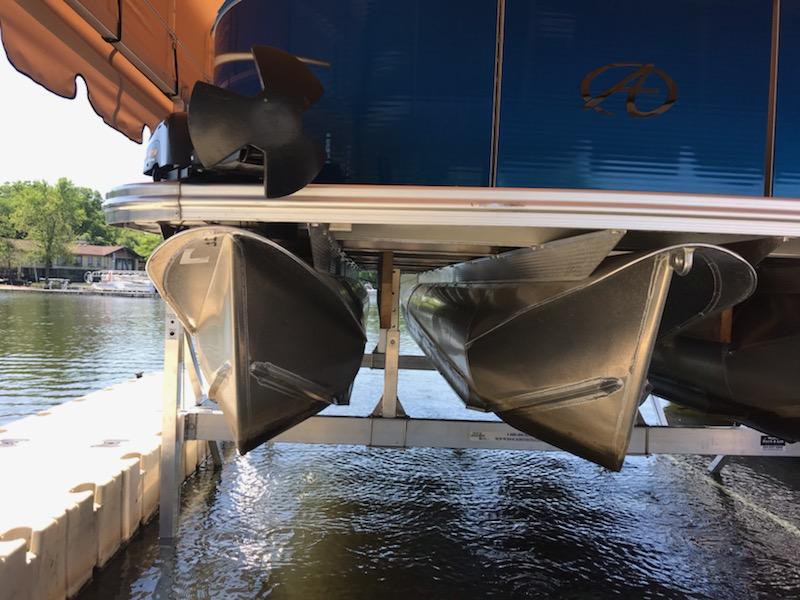

- The Dock Rite hydraulic lift has optional bunk systems to accommodate all types of watercraft from fishing boats, Tri-toons, Pontoons, or surf boats.
- The Hydraulic lift from Dock Rite was designed for minimum maintenance by having all the Hydraulic components and the electrical system high above the waterline.
- The corrosion free Roto molded box protects the hydraulic pump and battery from the elements. Featuring a hinged lid for easy access, it mounts securely on the lift tube.
| Model | 30120 | 40120 | 50120 | 60120 |
|---|---|---|---|---|
| Capacity | 3,000 lbs | 4,000 lbs | 5,000 lbs | 6,000 lbs |
| Inside Width | 120" | 120" | 120" | 120" |
| Outside Width | 129" | 129" | 129" | 129" |
| Length | 113" | 113" | 113" | 113" |
| Weight | 540 lbs | 620 lbs | 640 lbs | 670 lbs |
| Travel | 48" | 48" | 48" | 48" |
| Lowest Setting | 11" | 11" | 11" | 11" |
| Leg Adjustment | 30" | 30" | 30" | 30" |
| Winch | N/A | N/A | N/A | N/A |
| Electric Winch | N/A | N/A | N/A | N/A |
| Hydraulic | Standard | Standard | Standard | Standard |
| Screw Jacks | Standard | Standard | Standard | Standard |

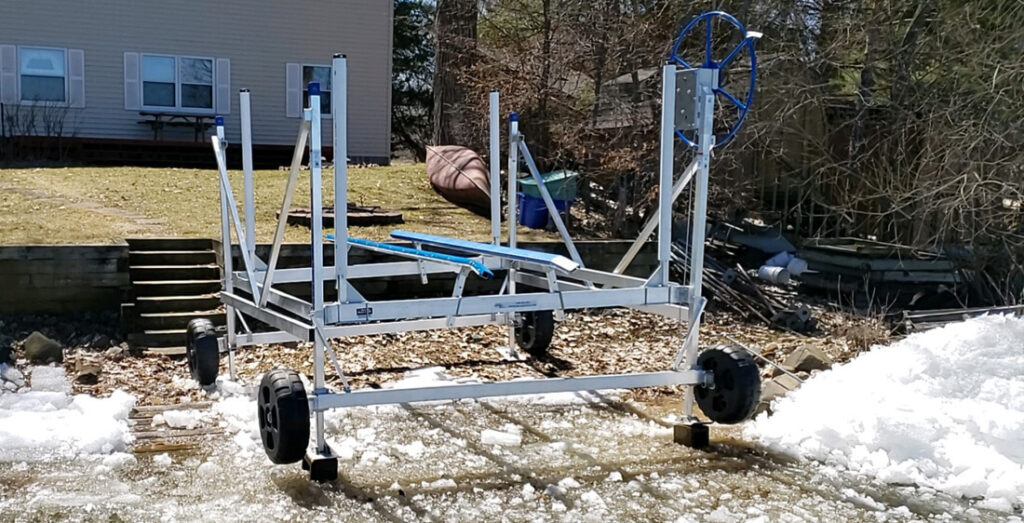

| Wheel Kit | Optional | Optional | Optional | Optional |
| Canopy | 22', 24', 26', 28', 30' | 22', 24', 26', 28', 30' | 22', 24', 26', 28', 30' | 22', 24', 26', 28', 30' |

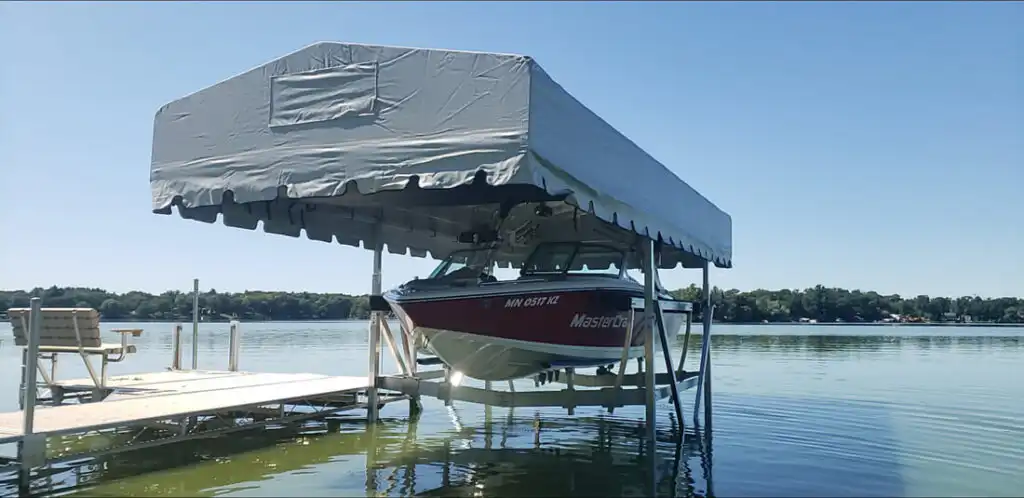

Dock Rite Vertical Lifts
Product Highlights:
- The Standard Lift Bed requires approx. 11" of water plus the draft of the boat.
- Add on Motors Available
- Double V-Side Design
- Corner Bracing for Added Stability and Strength.
- Grease Zerk Pulleys
- All Stainless Steel and Brass Hardware
- Lift Sizes from 1300# Capacity to 6000# Capacity
- Adjustable Screw Legs available on 3000# to 6000# Capacity Lifts
- Chain Drive Winches available on 3000# to 6000# Capacity Lifts
- Full Vinyl Bunks or Pontoon Rail Kit for your application.

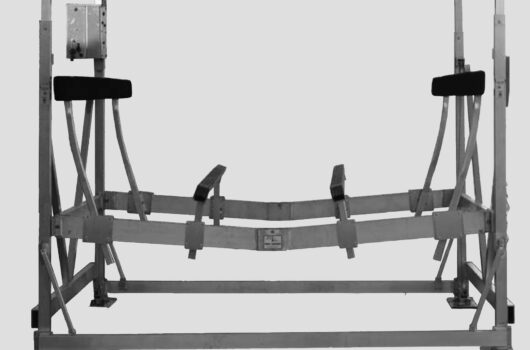

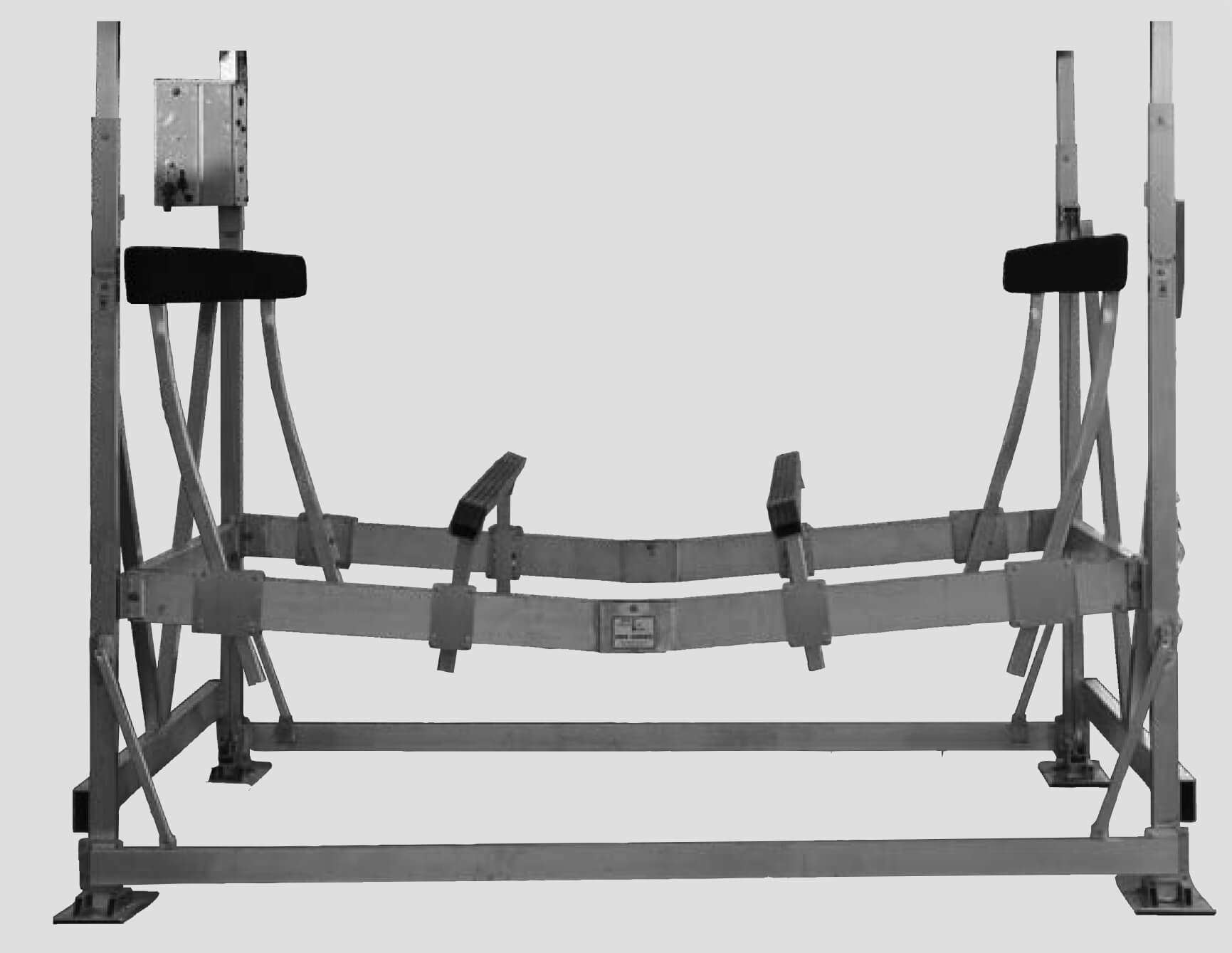

Dock Rite Pro Series Lifts
Product Highlights:
- The V-Frame Lift Bed requires approx. 8" of water plus the draft of the boat instead of the standard straight rack version lift that requires approx. 11" of water plus the draft of the boat.
- 24V Motor with corded pendant or wireless remote
- Double V-Side DesignHeavier Gauge Aluminum Frame versus Standard Dock Rite Vertical Lift.
- Corner Bracing for Added Stability and Strength.
- Grease Zerk Pulleys
- All Stainless Steel and Brass Hardware
- Lift Sizes from 4000# to 6000# Capacity
- Includes Adjustable Screw Legs, Batteries, Battery Tray, & Solar Panel (MDL Standard)
- Motor is fully enclosed in aluminum for a cleaner look.
- Full Vinyl Bunks or Pro Pontoon Rail Kit for your application.

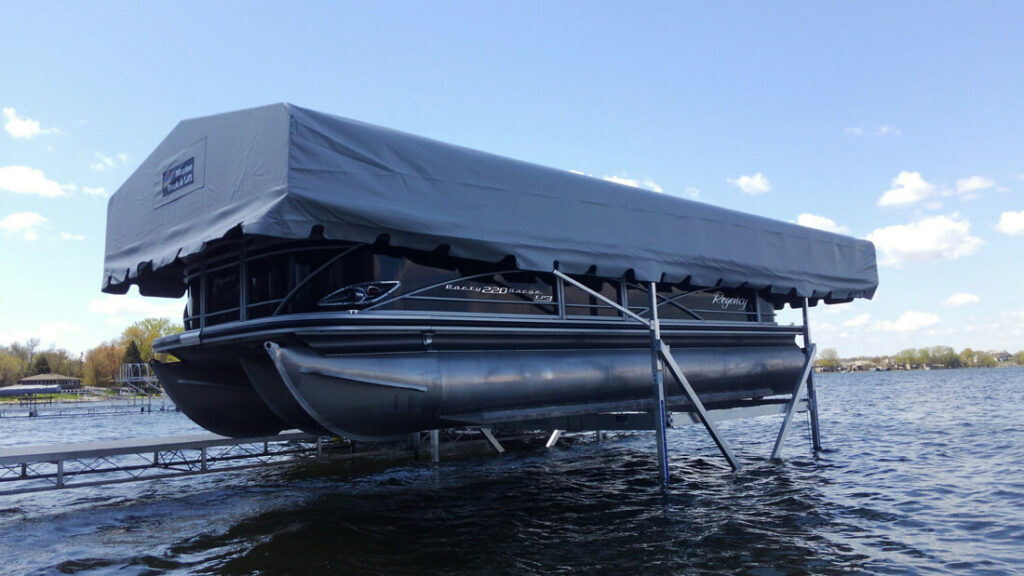

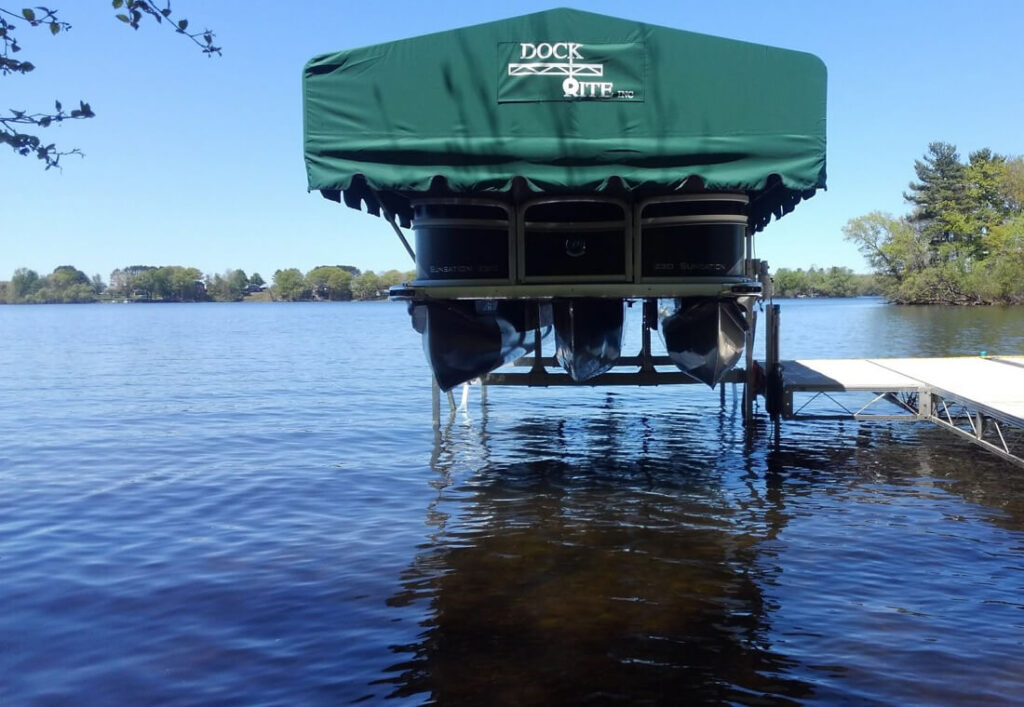

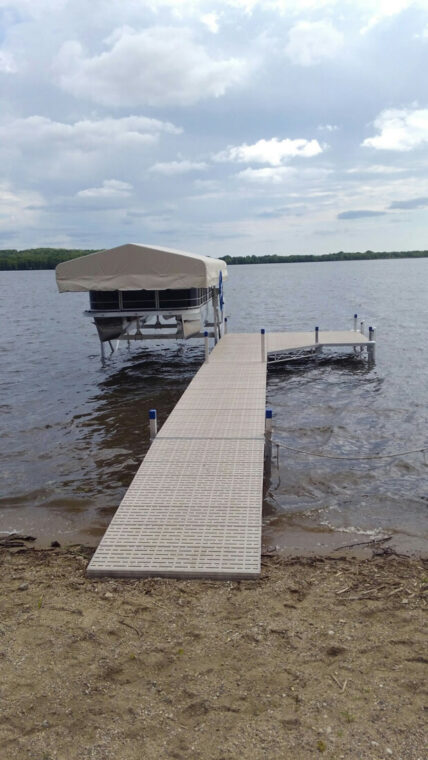

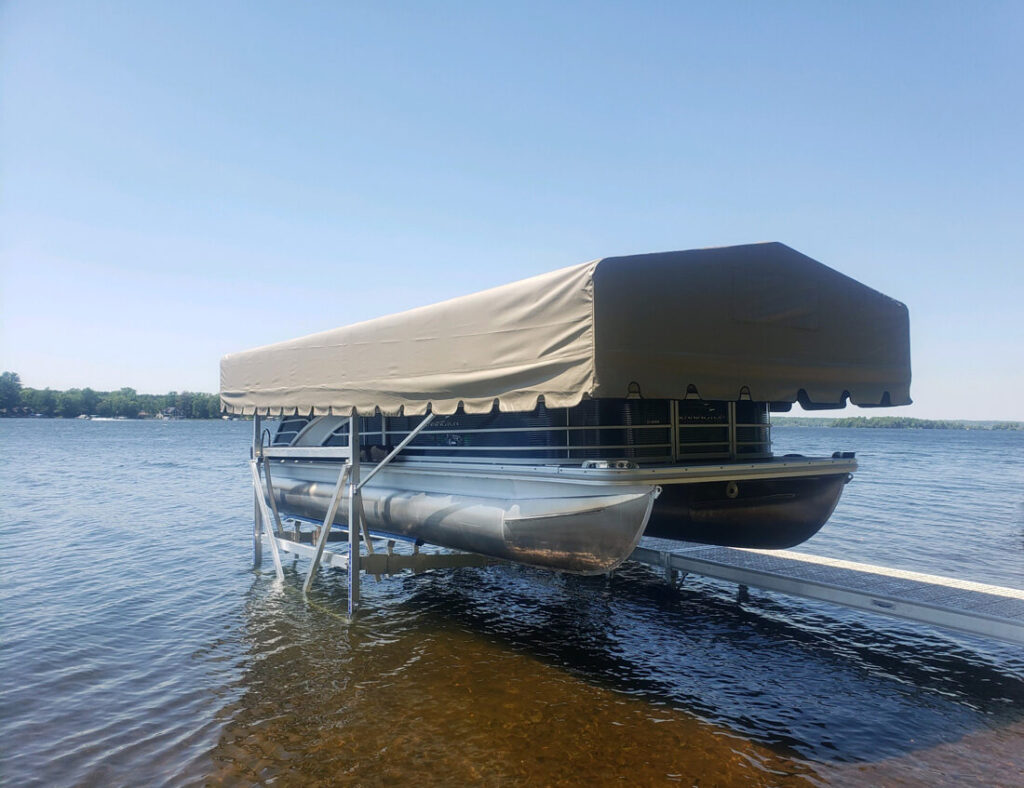

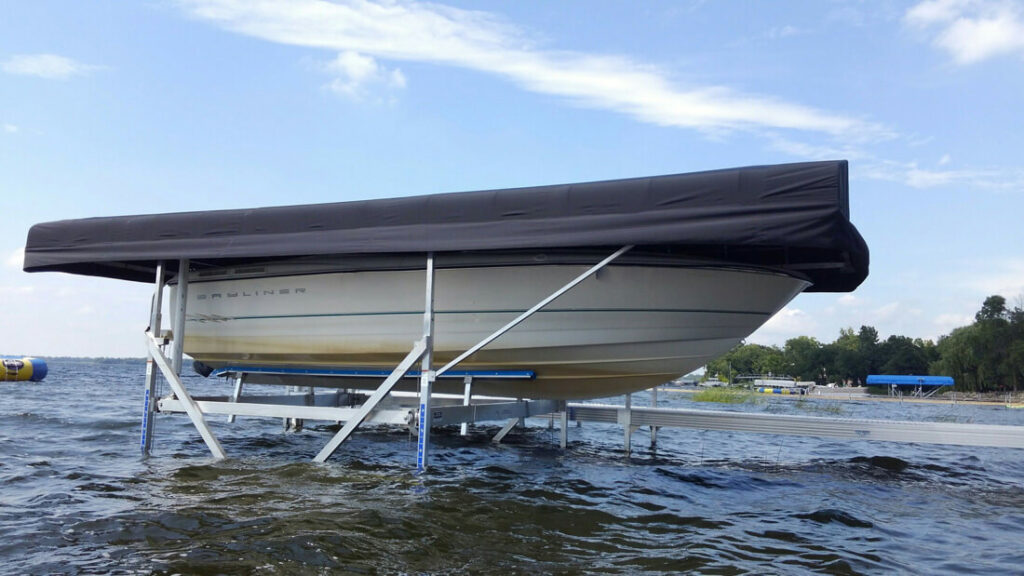

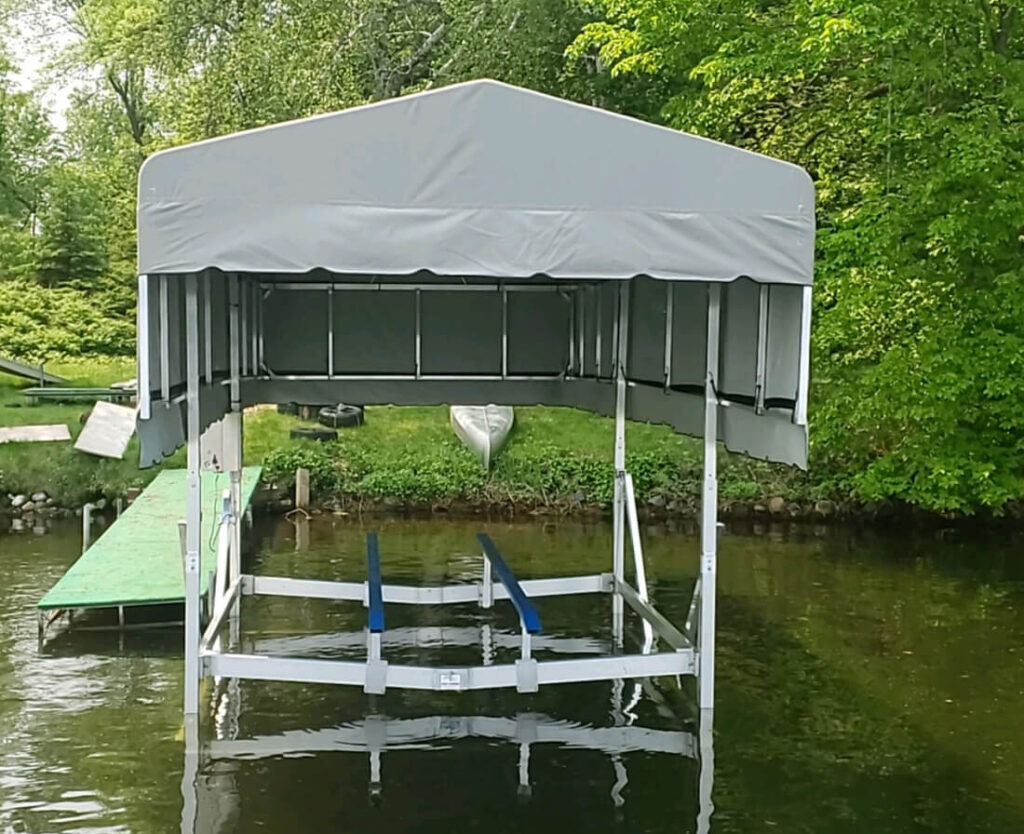

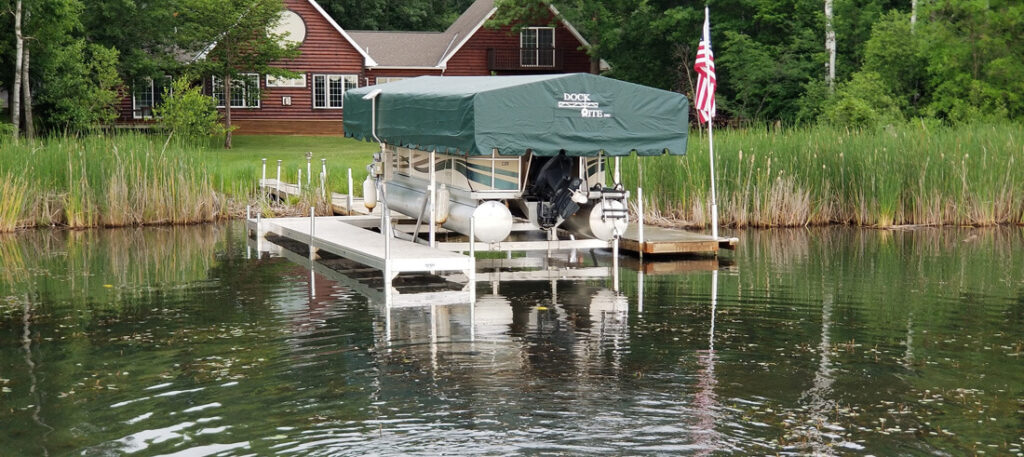

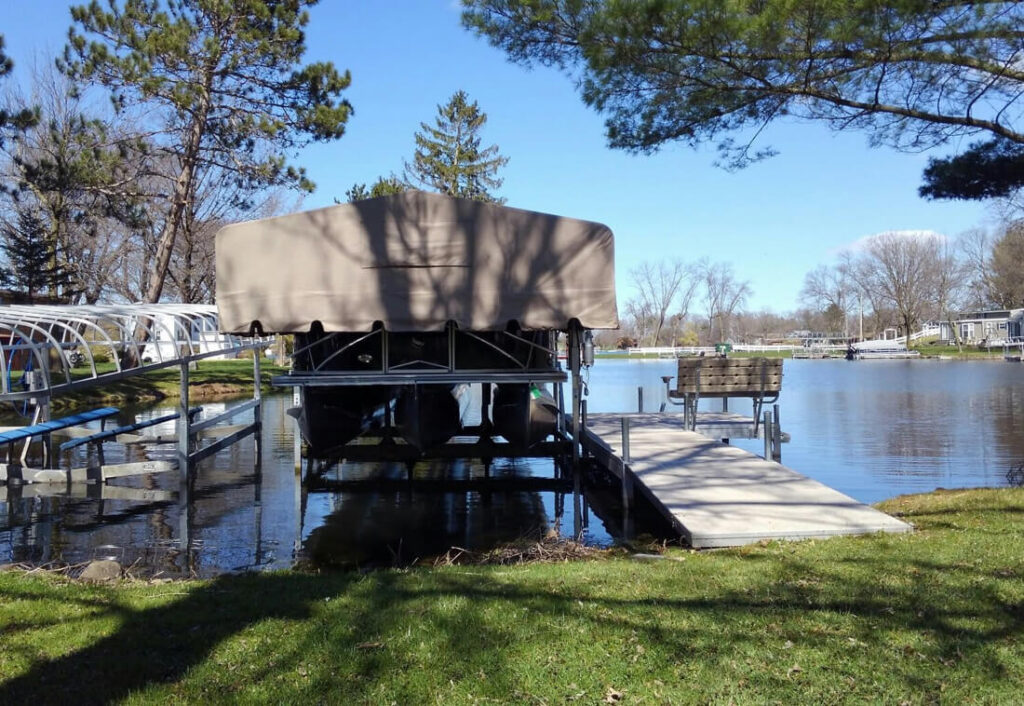

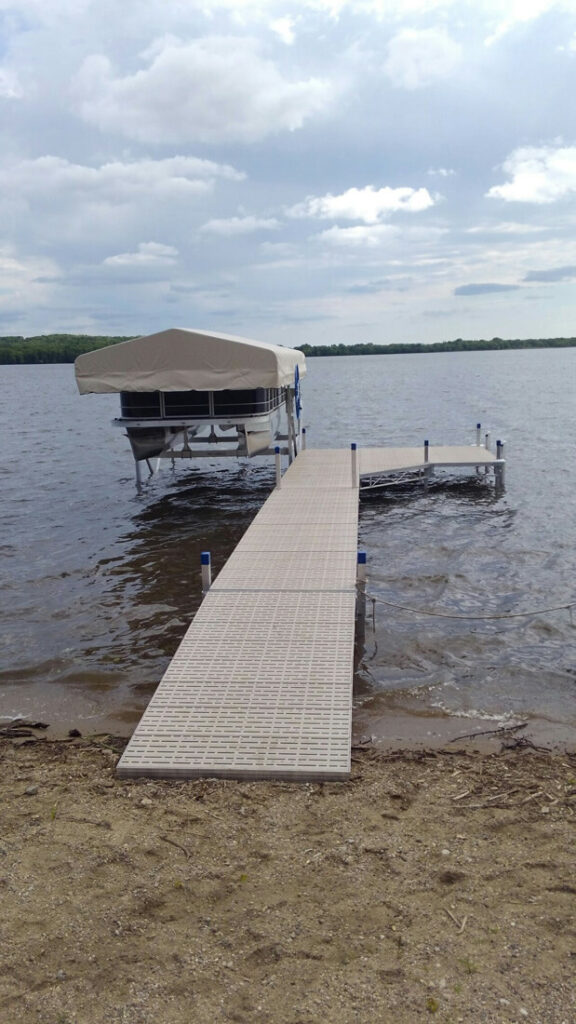

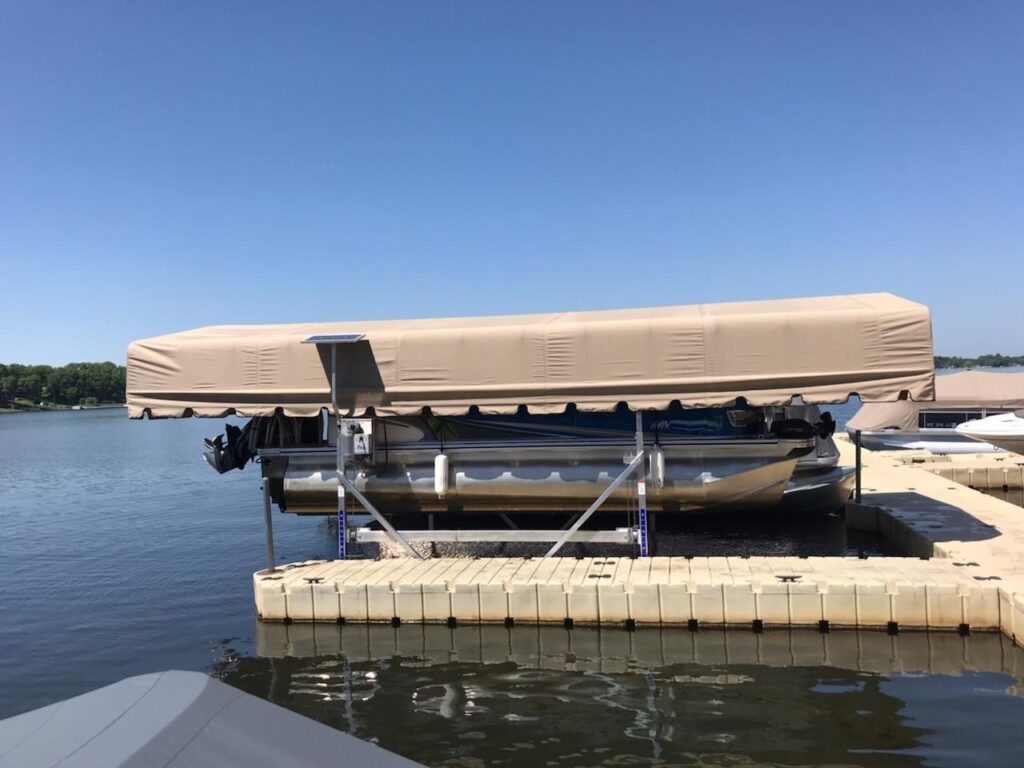

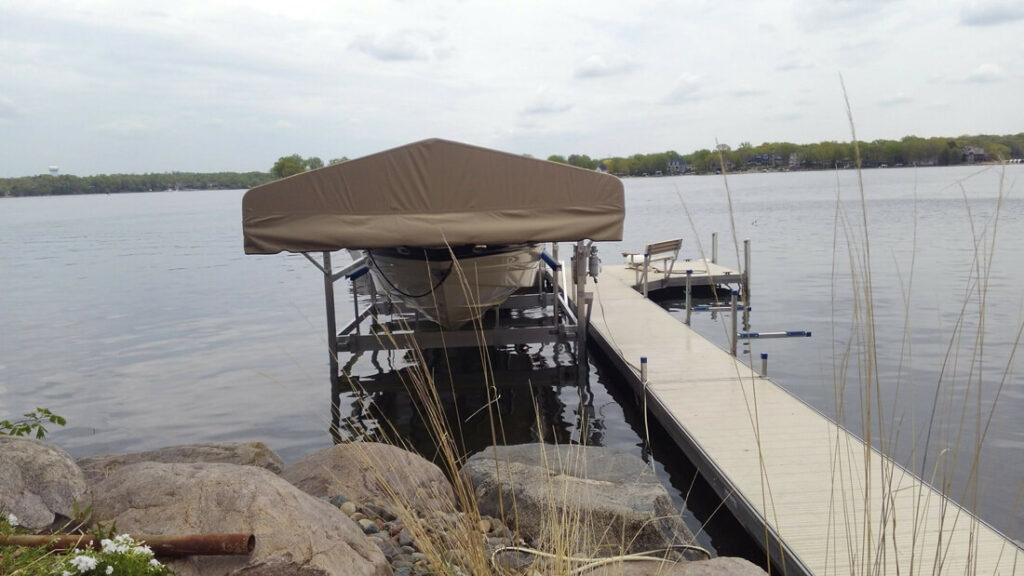

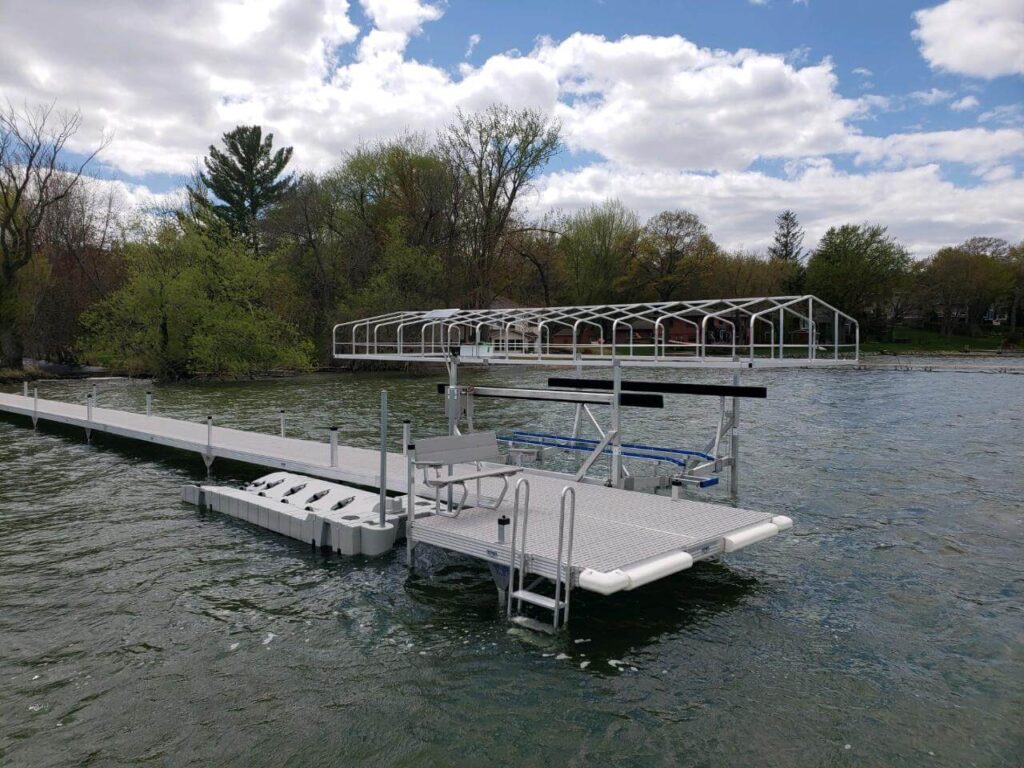

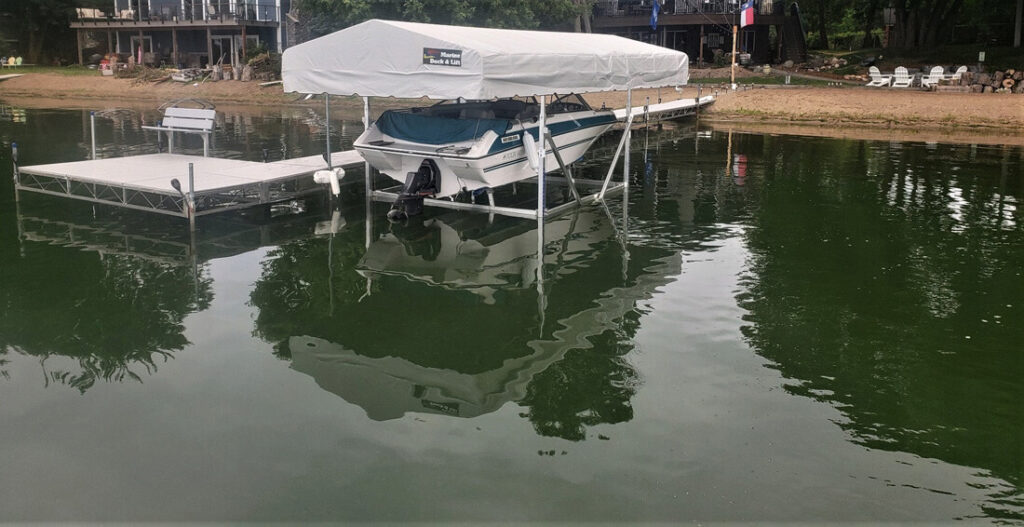

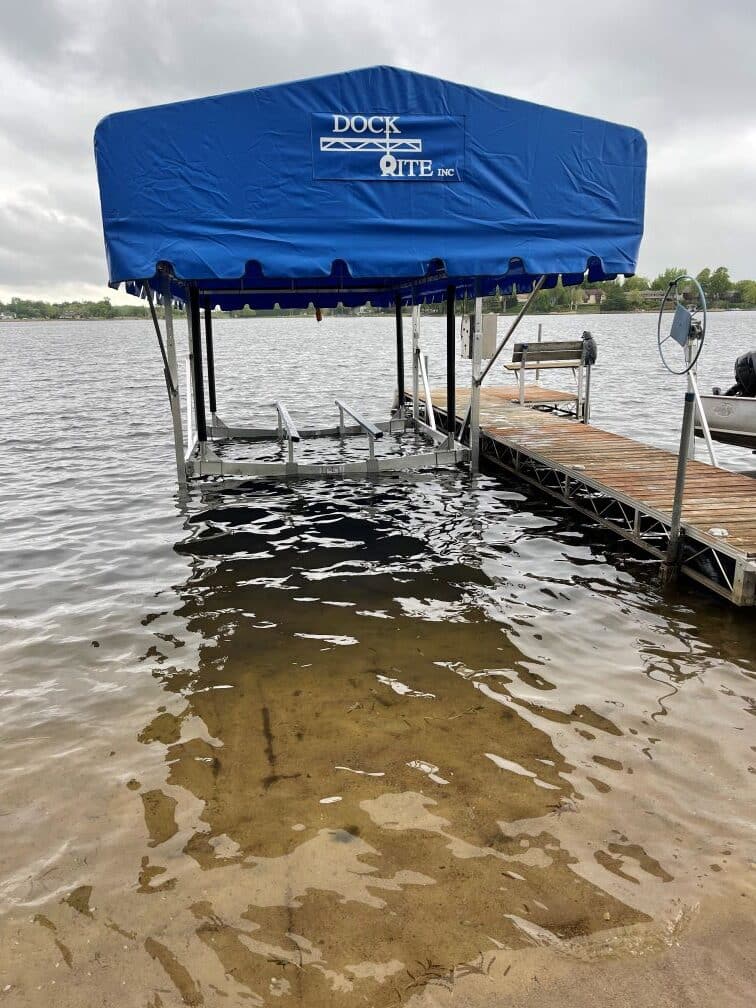

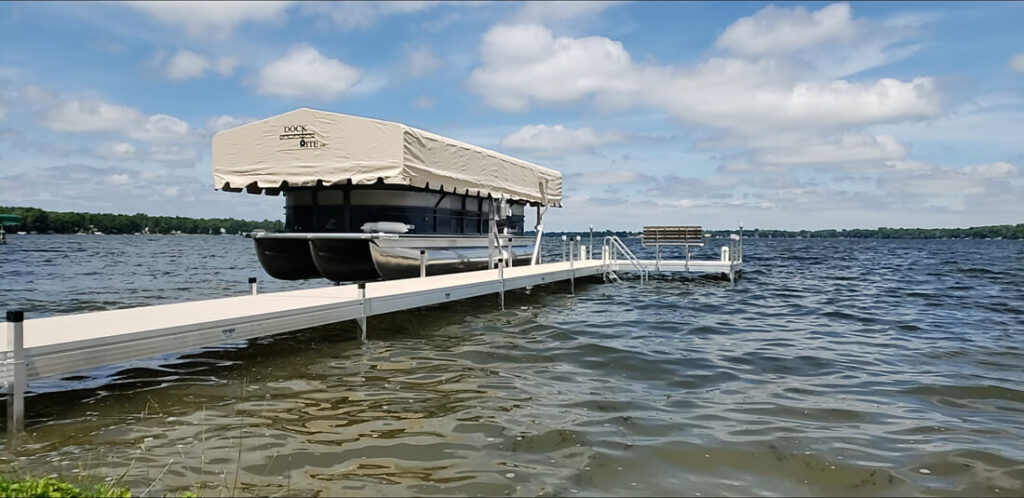

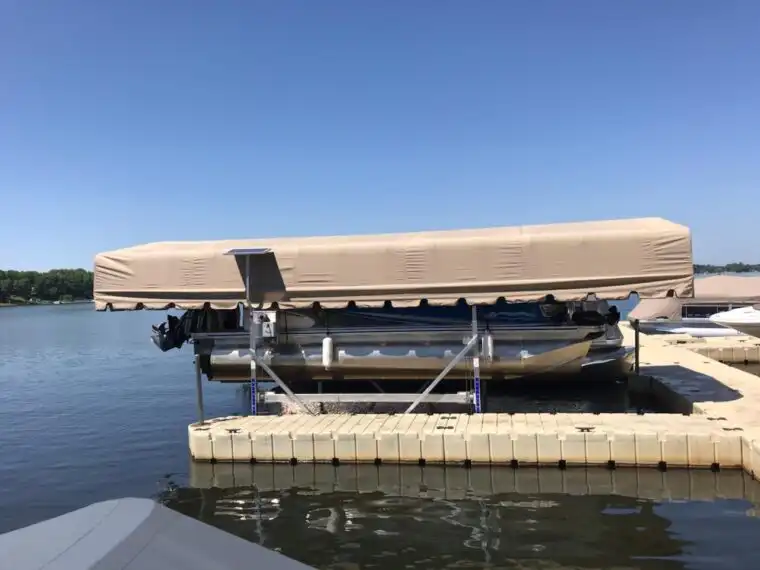

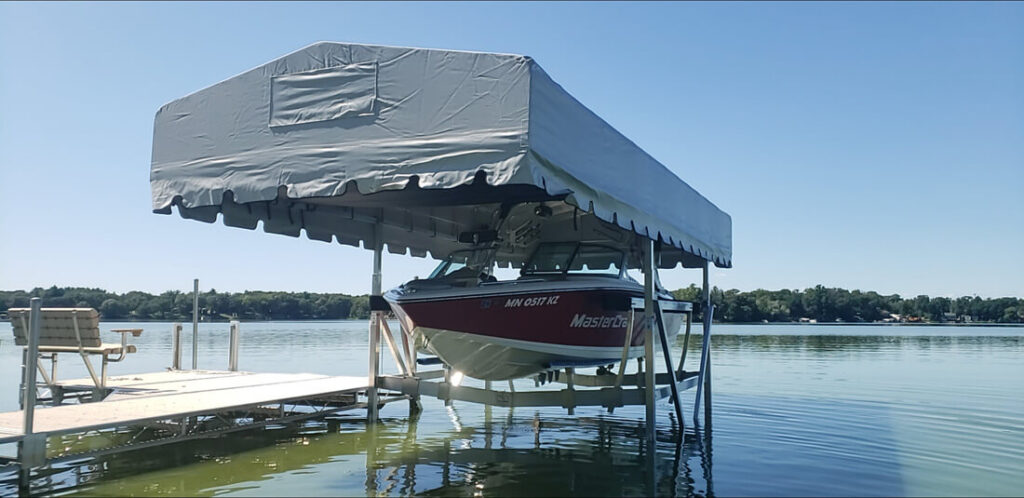

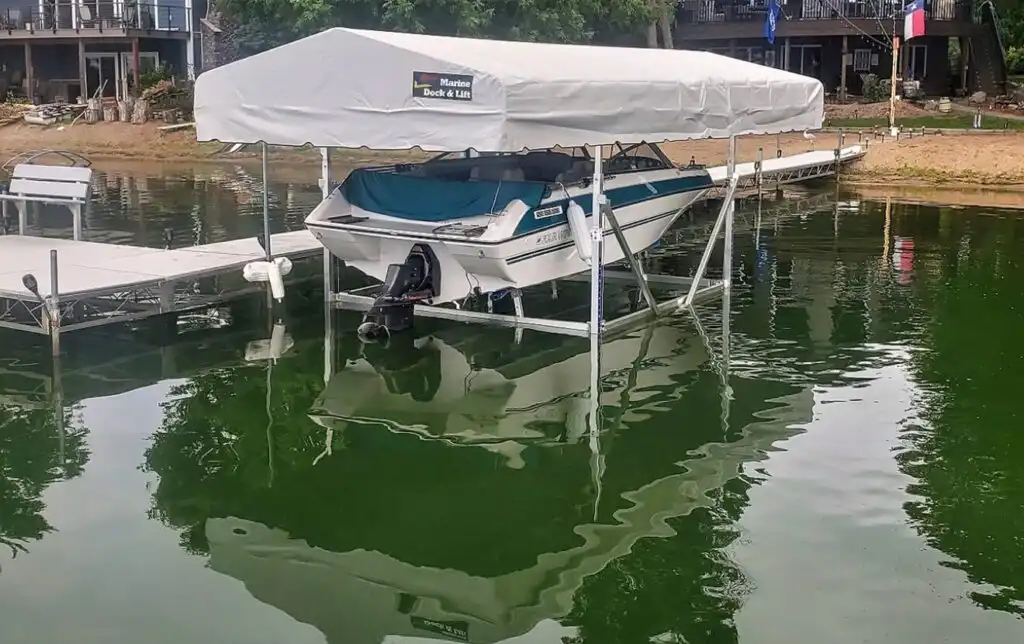

Completed Projects
